# d3.line d3折线图曲线图实现

d3.line()实现的其实依赖于svg：path而不是svg中line元素

var line =d3.line()
			.x(function(d){return x(d.x)})
			.y(function(d){return y(d.y)})

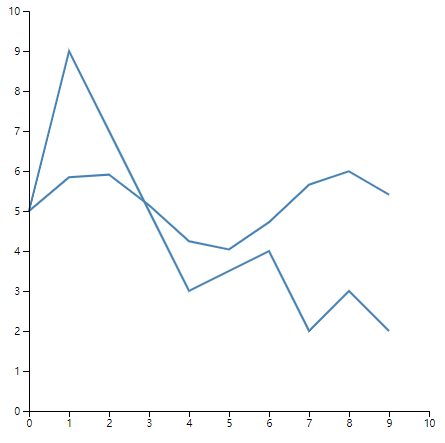

绘制线条的data是个二维数组!可同时画多条线


    var data = [ // <-C
        [
            {x: 0, y: 5},{x: 1, y: 9},{x: 2, y: 7},
            {x: 3, y: 5},{x: 4, y: 3},{x: 6, y: 4},
            {x: 7, y: 2},{x: 8, y: 3},{x: 9, y: 2}
        ],

        d3.range(10).map(function(i){
            return {x: i, y: Math.sin(i) + 5};
        })
    ];

d3.line函数返回一个D3线条生成器函数,结合svg:path中的d属性生成路径

svg.selectAll("path")
	.data(data)
.enter()
	.append("path") // <-E
	.attr("class", "line")
	.attr("d", function(d){
		console.log(d)
		return line(d)
	;}); // <-F

<!DOCTYPE html>
<html>
<head>
    <meta charset="utf-8">
    <title>Lines</title>
    <link rel="stylesheet" type="text/css" href="../../css/styles.css"/>
    <script type = "text/javascript" src = "https://d3js.org/d3.v6.min.js"></script>
</head>

<body>

<script type="text/javascript">
    var width = 500,
        height = 500,
        margin = 50,
        x = d3.scaleLinear() // <-A
            .domain([0, 10])
            .range([margin, width - margin]),
        y = d3.scaleLinear() // <-B
            .domain([0, 10])
            .range([height - margin, margin]);

    var data = [ // <-C
        [
            {x: 0, y: 5},{x: 1, y: 9},{x: 2, y: 7},
            {x: 3, y: 5},{x: 4, y: 3},{x: 6, y: 4},
            {x: 7, y: 2},{x: 8, y: 3},{x: 9, y: 2}
        ],

        d3.range(10).map(function(i){
            return {x: i, y: Math.sin(i) + 5};
        })
    ];

    var line = d3.line() // <-D
            .x(function(d){return x(d.x);})
            .y(function(d){return y(d.y);});

    var svg = d3.select("body").append("svg");

    svg.attr("height", height)
        .attr("width", width);

     svg.selectAll("path")
            .data(data)
        .enter()
            .append("path") // <-E
            .attr("class", "line")
            .attr("d", function(d){
				console.log(d)
				return line(d)
			;}); // <-F

    renderAxes(svg);

    function renderAxes(svg){ // <-G
        var xAxis = d3.axisBottom()
                .scale(x.range([0, quadrantWidth()]));

        var yAxis = d3.axisLeft()
                .scale(y.range([quadrantHeight(), 0]));

        svg.append("g")
            .attr("class", "axis")
            .attr("transform", function(){
                return "translate(" + xStart()
                    + "," + yStart() + ")";
            })
            .call(xAxis);

        svg.append("g")
            .attr("class", "axis")
            .attr("transform", function(){
                return "translate(" + xStart()
                    + "," + yEnd() + ")";
            })
            .call(yAxis);
    }

    function xStart(){
        return margin;
    }

    function yStart(){
        return height - margin;
    }

    function xEnd(){
        return width - margin;
    }

    function yEnd(){
        return margin;
    }

    function quadrantWidth(){
        return width - 2 * margin;
    }

    function quadrantHeight(){
        return height - 2 * margin;
    }
</script>

</body>

</html>

# d3.line优化线条curve

var line =d3.line()
			.x(function(d){return x(d.x)})
			.y(function(d){return y(d.y)})
			.curve(mode)

<!DOCTYPE html>
<html>
<head>
    <meta charset="utf-8">
    <title>Line Curve</title>
    <link rel="stylesheet" type="text/css" href="../../css/styles.css"/>
   <script type = "text/javascript" src = "https://d3js.org/d3.v6.min.js"></script>
</head>

<body>

<script type="text/javascript">
    var width = 500,
        height = 500,
        margin = 30,
        x = d3.scaleLinear()
            .domain([0, 10])
            .range([margin, width - margin]),
        y = d3.scaleLinear()
            .domain([0, 10])
            .range([height - margin, margin]);

    var data = [
        [
            {x: 0, y: 5},{x: 1, y: 9},{x: 2, y: 7},
            {x: 3, y: 5},{x: 4, y: 3},{x: 6, y: 4},
            {x: 7, y: 2},{x: 8, y: 3},{x: 9, y: 2}
        ],
        d3.range(10).map(function(i){
            return {x: i, y: Math.sin(i) + 5};
        })
    ];

    var svg = d3.select("body").append("svg");

    svg.attr("height", height)
        .attr("width", width);

    renderAxes(svg);

    render(d3.curveLinear);

    renderDots(svg);

    function render(mode){
        var line = d3.line()
                .x(function(d){return x(d.x);})
                .y(function(d){return y(d.y);})
                .curve(mode); // <-A

        svg.selectAll("path.line")
                .data(data)
            .enter()
                .append("path")
                .attr("class", "line");

        svg.selectAll("path.line")
                .data(data)
            .attr("d", function(d){return line(d);});
    }

    function renderDots(svg){ // <-B
        data.forEach(function(list){
             svg.append("g").selectAll("circle")
                .data(list)
              .enter().append("circle") // <-C
                .attr("class", "dot")
                .attr("cx", function(d) { return x(d.x); })
                .attr("cy", function(d) { return y(d.y); })
                .attr("r", 4.5);
        });
    }

    function renderAxes(svg){
        var xAxis = d3.axisBottom()
                .scale(d3.scaleLinear().range([0, quadrantWidth()]));

        var yAxis = d3.axisLeft()
                .scale(d3.scaleLinear().range([quadrantHeight(), 0]));

        svg.append("g")
            .attr("class", "axis")
            .attr("transform", function(){
                return "translate(" + xStart() + "," + yStart() + ")";
            })
            .call(xAxis);

        svg.append("g")
            .attr("class", "axis")
            .attr("transform", function(){
                return "translate(" + xStart() + "," + yEnd() + ")";
            })
            .call(yAxis);
    }

    function xStart(){
        return margin;
    }

    function yStart(){
        return height - margin;
    }

    function xEnd(){
        return width - margin;
    }

    function yEnd(){
        return margin;
    }

    function quadrantWidth(){
        return width - 2 * margin;
    }

    function quadrantHeight(){
        return height - 2 * margin;
    }
</script>

<h4>Curve Mode:</h4>
<div class="control-group">
    <button onclick="render(d3.curveLinear)">linear</button>
    <button onclick="render(d3.curveLinearClosed)">linear closed</button>
    <button onclick="render(d3.curveStepBefore)">step before</button>
    <button onclick="render(d3.curveStepAfter)">step after</button>
    <button onclick="render(d3.curveBasis)">basis</button>
    <button onclick="render(d3.curveBasisOpen)">basis open</button>
    <button onclick="render(d3.curveBasisClosed)">basis closed</button>
</div>
<div class="control-group">
    <button onclick="render(d3.curveBundle)">bundle</button>
    <button onclick="render(d3.curveCardinal)">cardinal</button>
    <button onclick="render(d3.curveCardinalOpen)">cardinal open</button>
    <button onclick="render(d3.curveCardinalClosed)">cardinal closed</button>
    <button onclick="render(d3.curveMonotoneY)">monotone</button>
    <button onclick="render(d3.curveCatmullRom)">CatmullRom</button>
</div>

</body>

</html>

# d3tension线条张力

tension:[0,1]（大于1线条也会变动）(1是无张力的直线，大于1可能是曲线且奇怪)

var line = d3.line()
                .curve(d3.curveCardinal.tension(tension)) // <-A
                .x(function(d){return x(d.x);})
                .y(function(d){return y(d.y);});
